| Rigid Corn Harvesting Header L03 |
|
|
|
|
|
|
|
|
|
|
| |
Model: L03
Cereal Crop: Corn
Type: Rigid Harvesting Header | |
| |
|
|

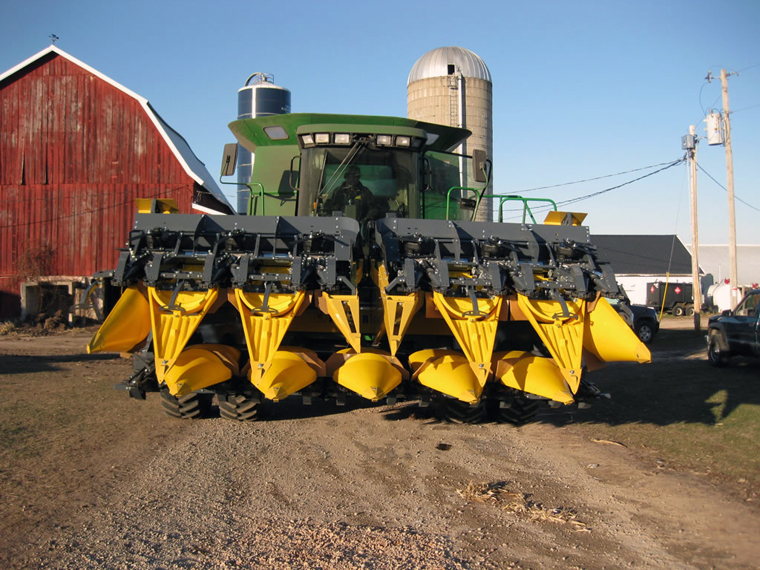

L03 Rigid Corn Harvesting Header represents an efficient and reliable FANTINI product.
L03 Rigid Corn Harvesting Header is a very robust head that can easily fit any kind of combine and/or corn shredder. The stalk chopper is mounted in a rear central position and directly connected to the harvesting drive gear box to form a solid and durable unit.
FANTINI L03 Rigid Corn Harvesting Header assures optimal crop flow and maximum yield potential.
Technical Details *
|
L03 rigid CORN HEADER Technical Details* |
|
N° row |
row spacing |
width during transport |
header weight basic |
weight with stalk chopper |
|
4 |
70-75-80 cm |
315 cm (75 cm) |
1200 kg |
1450 kg |
|
5 |
70-75-80 cm |
390 cm (75 cm) |
1600 kg |
1850 kg |
|
6 |
70-75-80 cm |
465 cm (75 cm) |
1850 kg |
2050 kg |
|
8 |
70-75-80 cm |
615 cm (75 cm) |
2450 kg |
2700 kg |
|
9 |
70-75-80 cm |
690 cm (75 cm) |
2750 kg |
3100 kg |
|
10 |
45 cm |
770 cm |
3000 kg |
3400 kg |
|
12 |
45 cm |
920 cm |
3500 kg |
4000 kg |
|
12 |
45 cm |
585 cm |
2700 kg |
- |
|
* Data may be indicative and approximate. Fantini reserve the right, at their sole discretion, to change, modify or otherwise alter these terms and conditions at any time without prior notice.

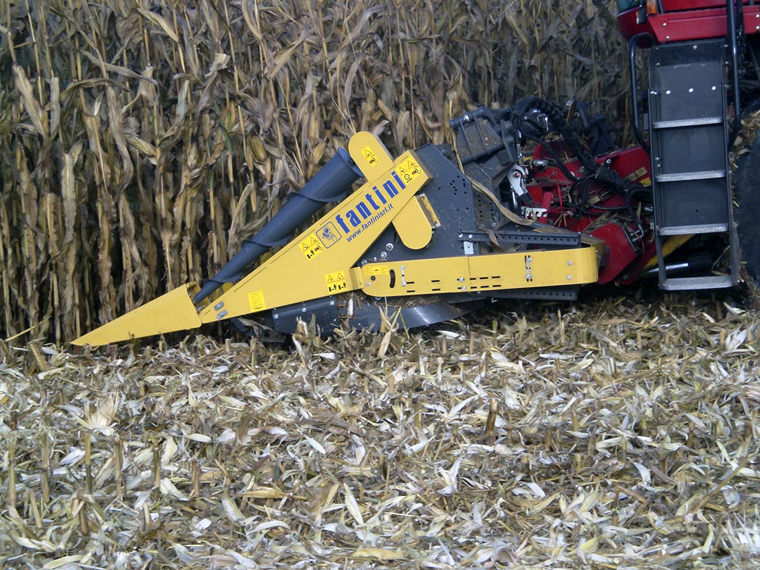

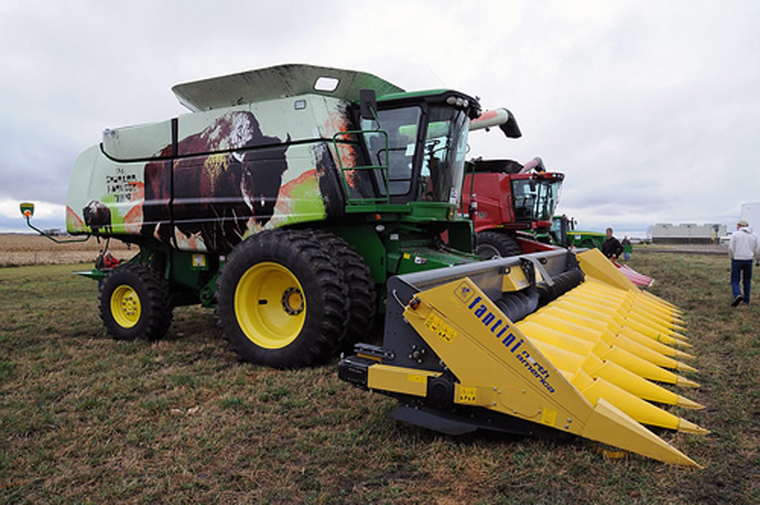

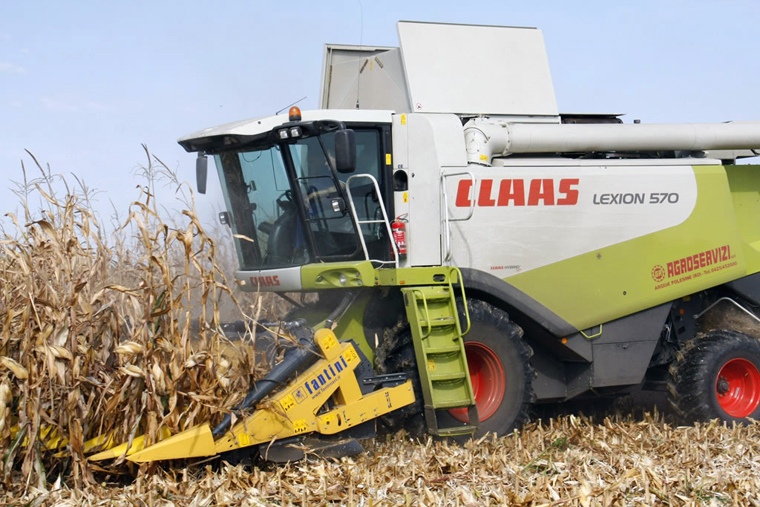

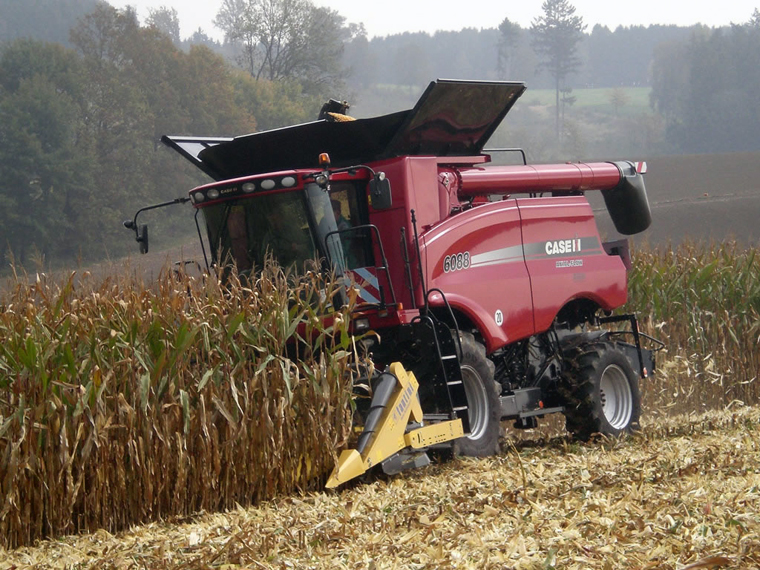

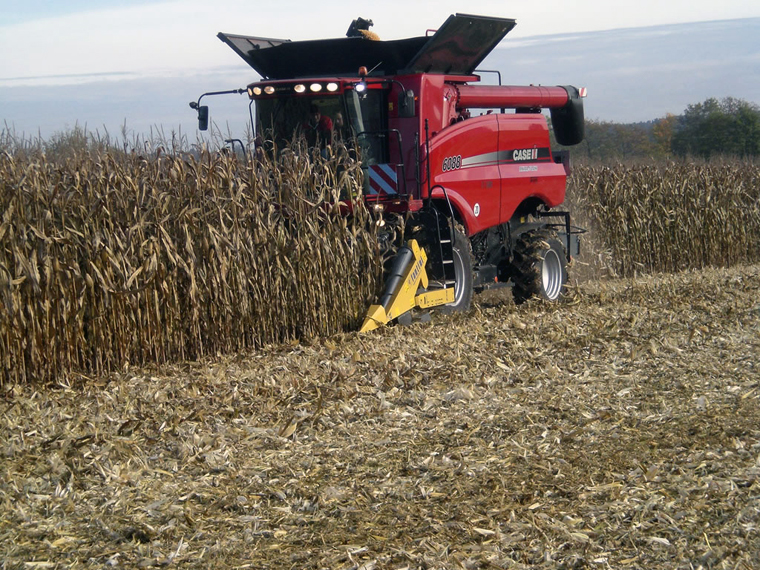

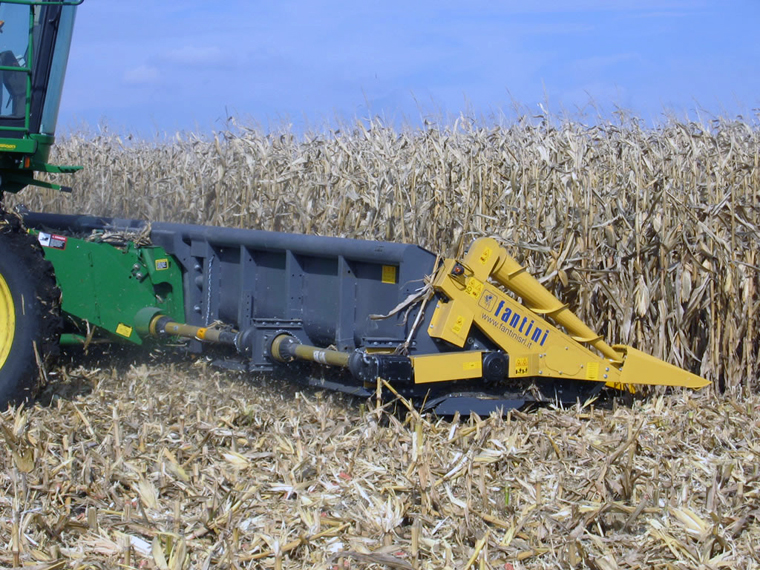

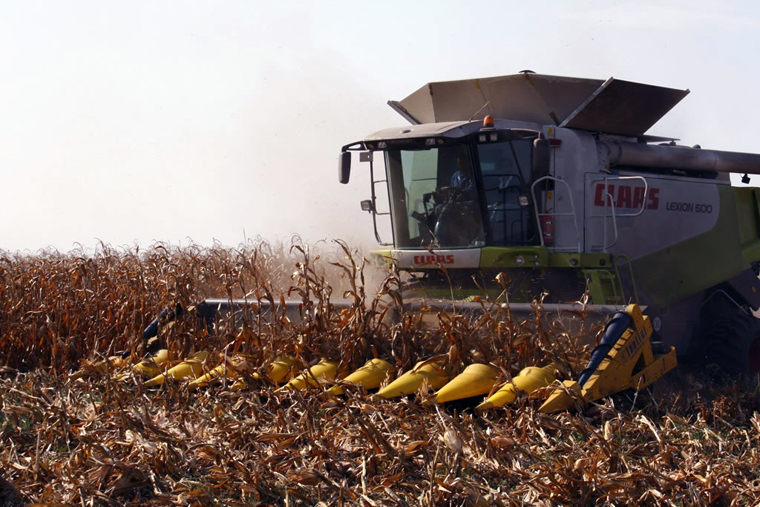

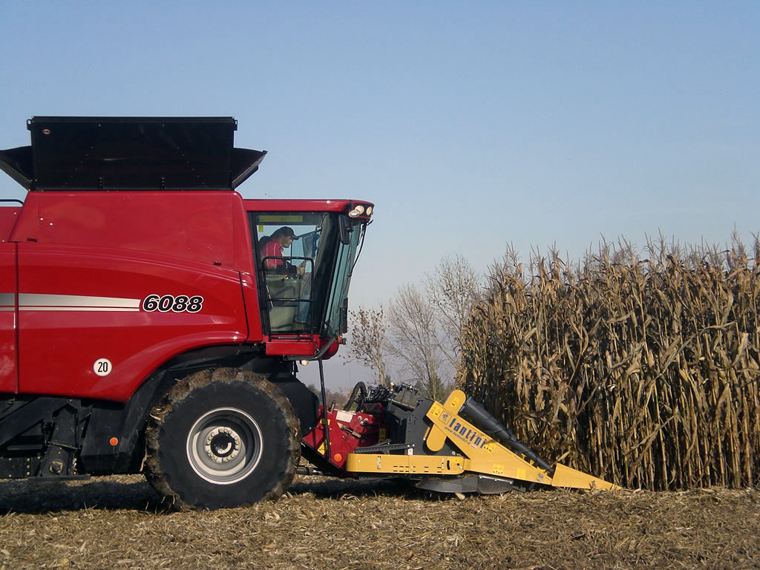

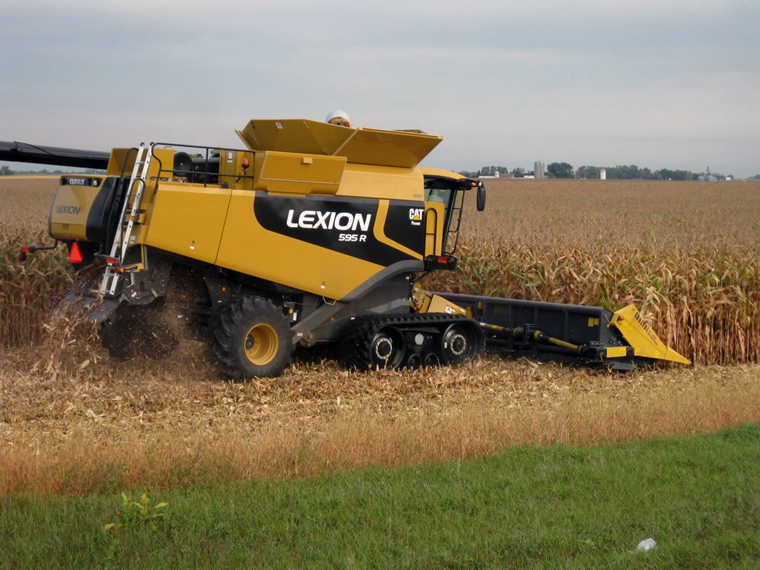

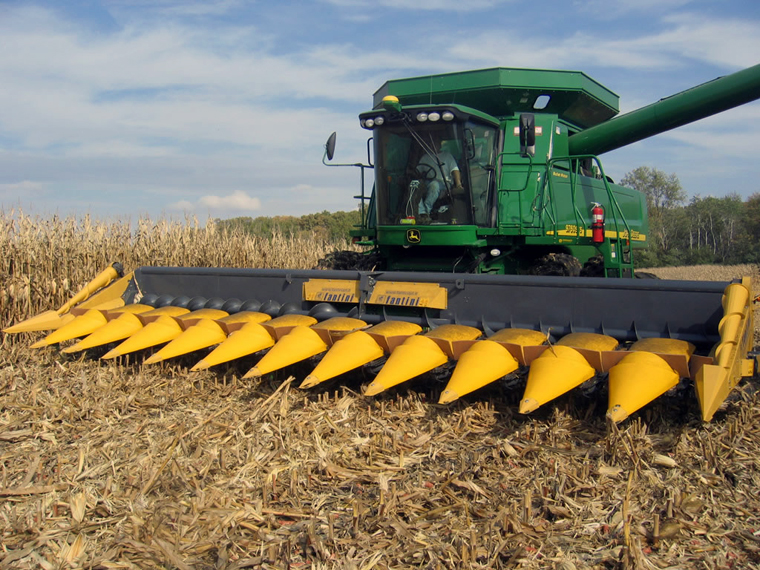

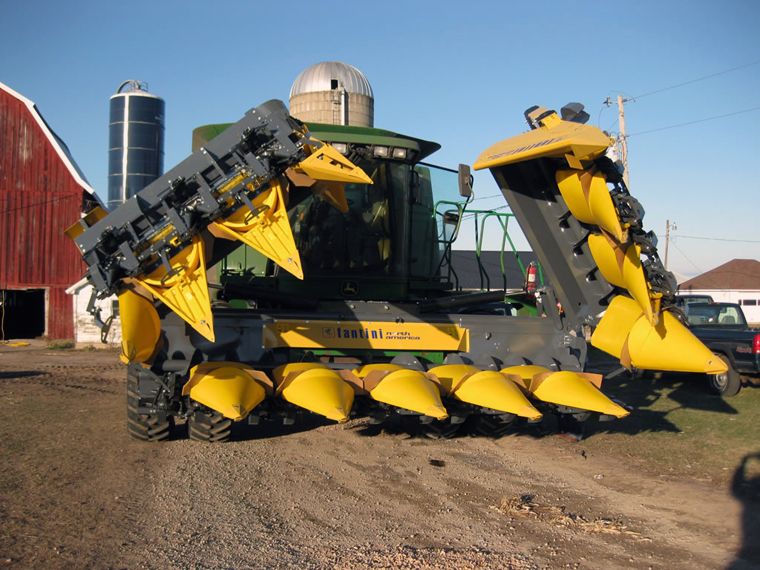

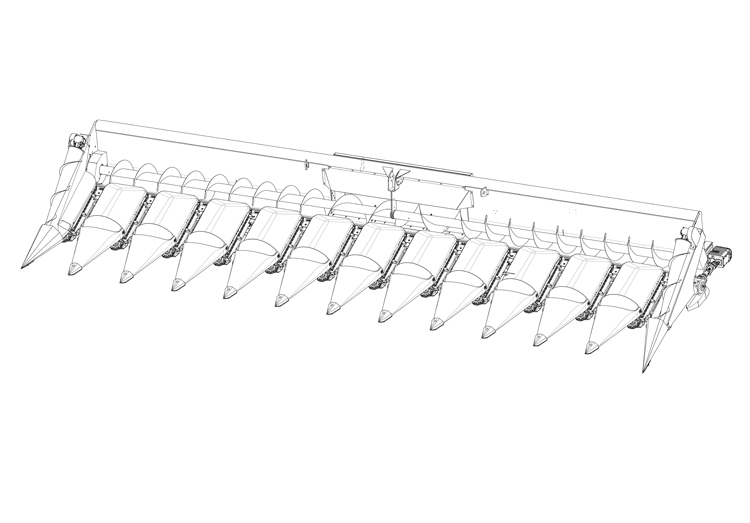

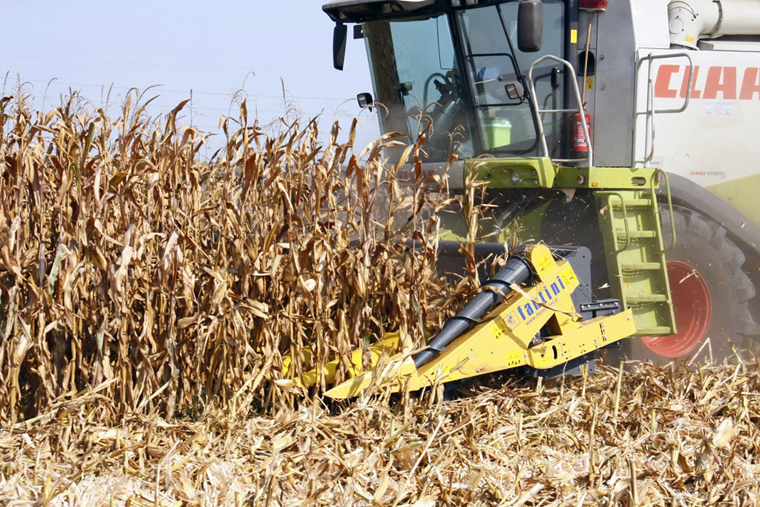

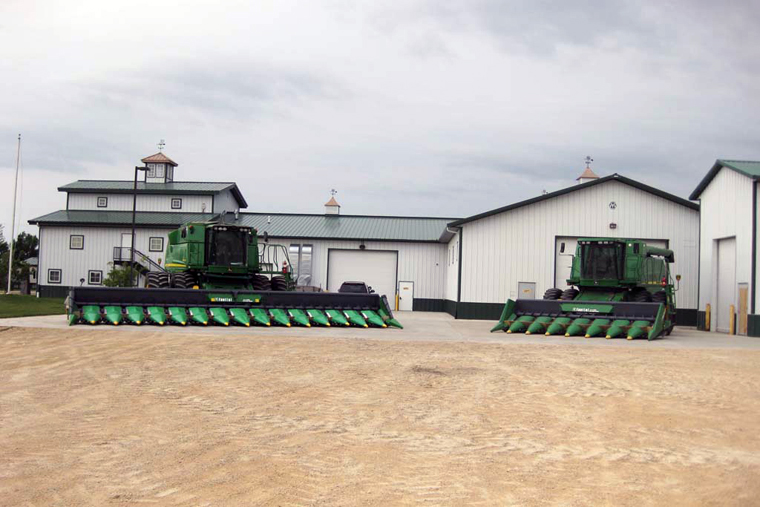

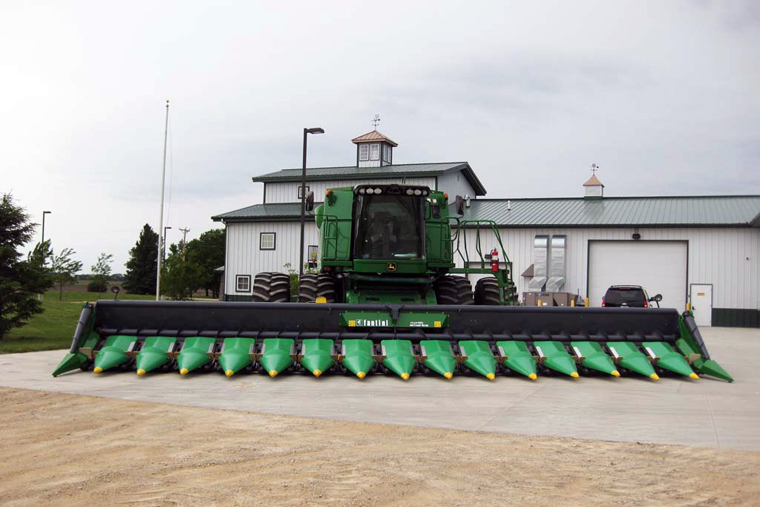

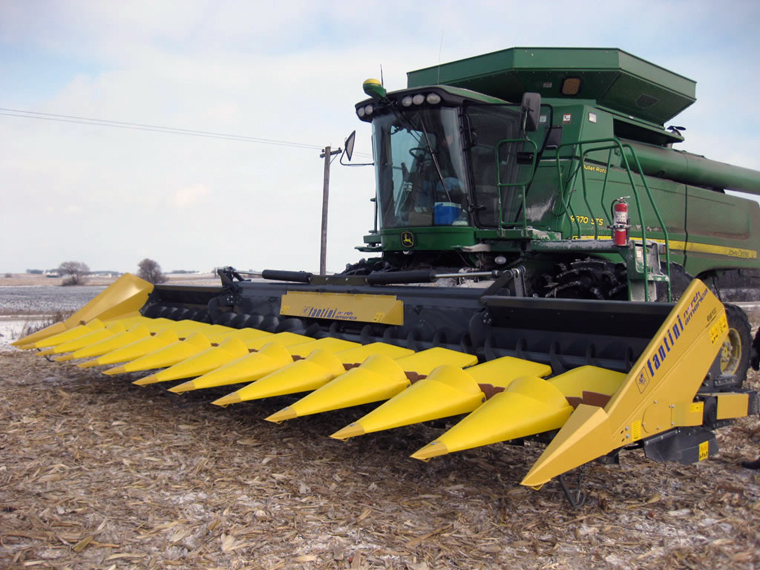

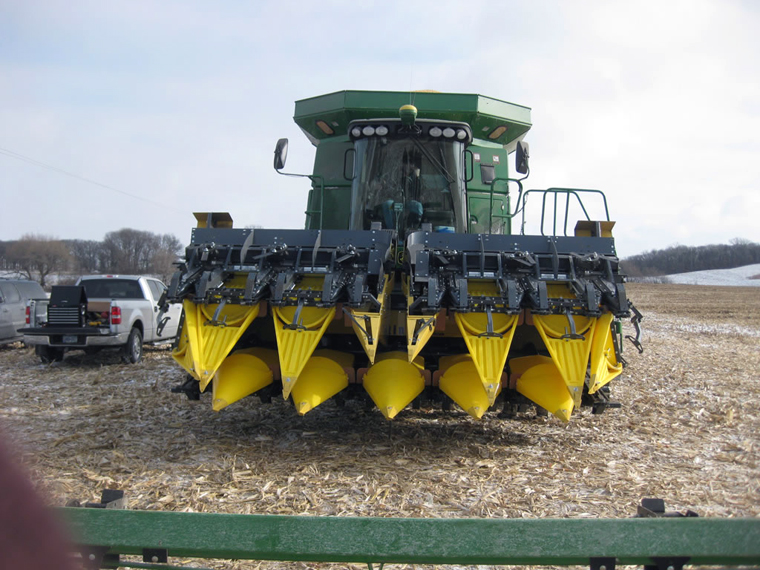

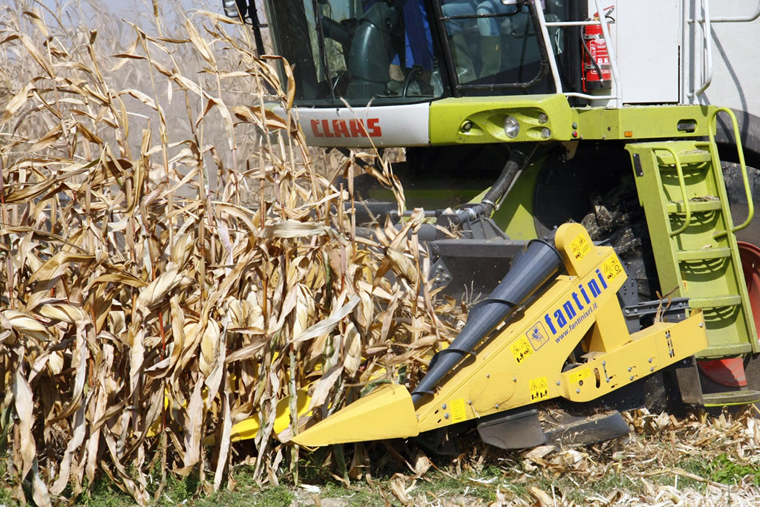

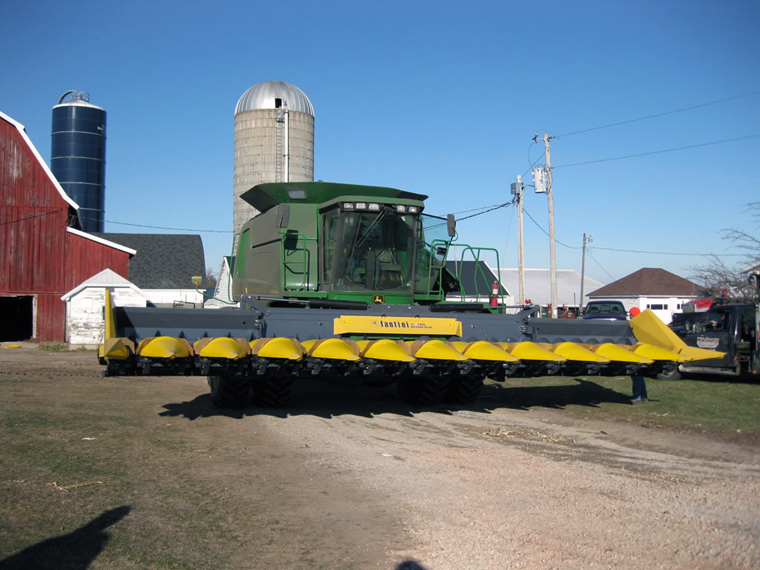

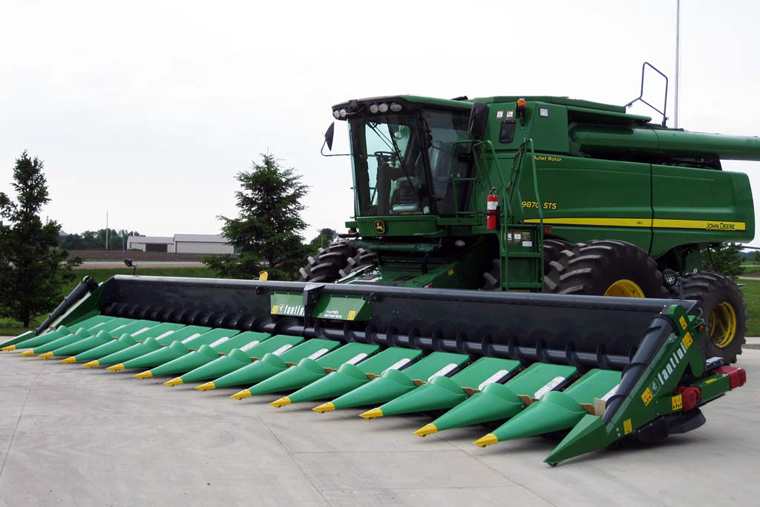

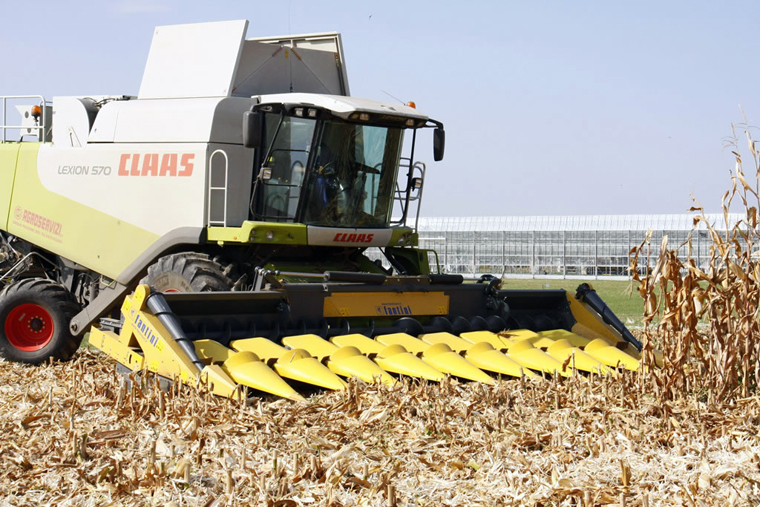

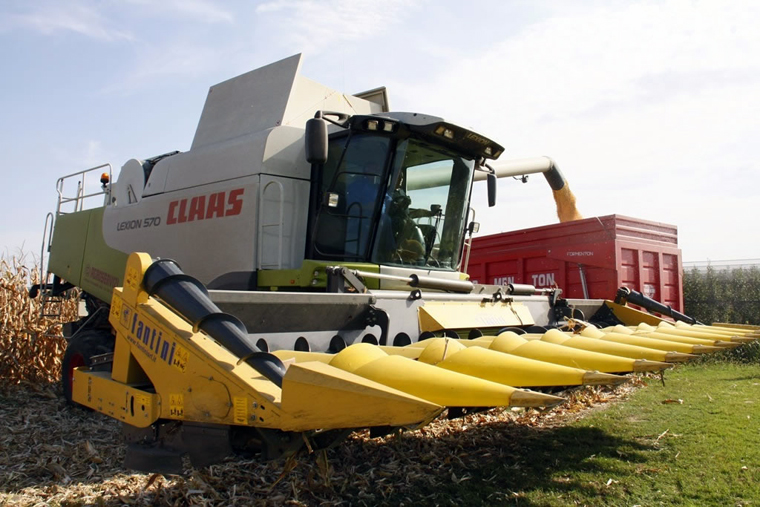

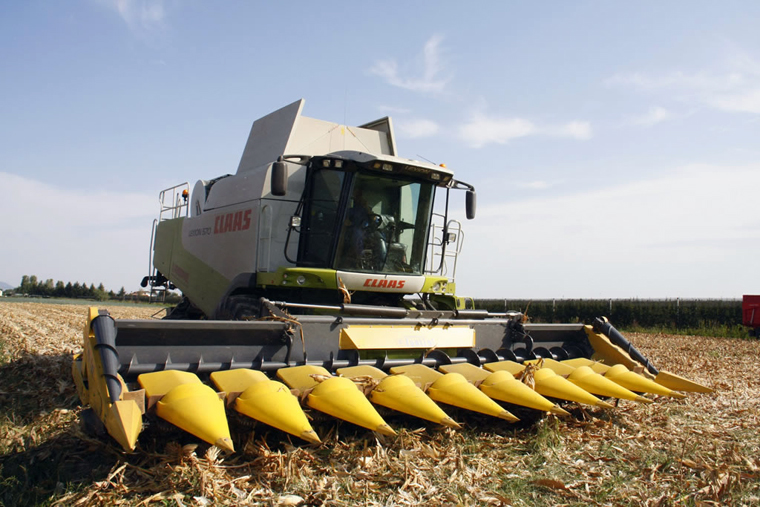

| Immagini |
|
